Dia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball Lens

Product Categories
Anhui Uniform Trading Co.Ltd
Contact Now

Dia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball Lens

  • 1
  • 2
  • 3

Brand Name : UNIFORM

Model Number : AUTC-GP-526

Certification : RoHS, ISO9001, CE, TUV

Place of Origin : CHINA

MOQ : 100pcs

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 300-500pcs/day

Delivery Time : 7 days

Packaging Details : carton box and wooden box

material : Quartz glass

Size : dia.30mm, length:35mm

Transmittance : 95%

Shape : rod shape

HS Code : 9001909090

Contact Now

Dia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball Lens

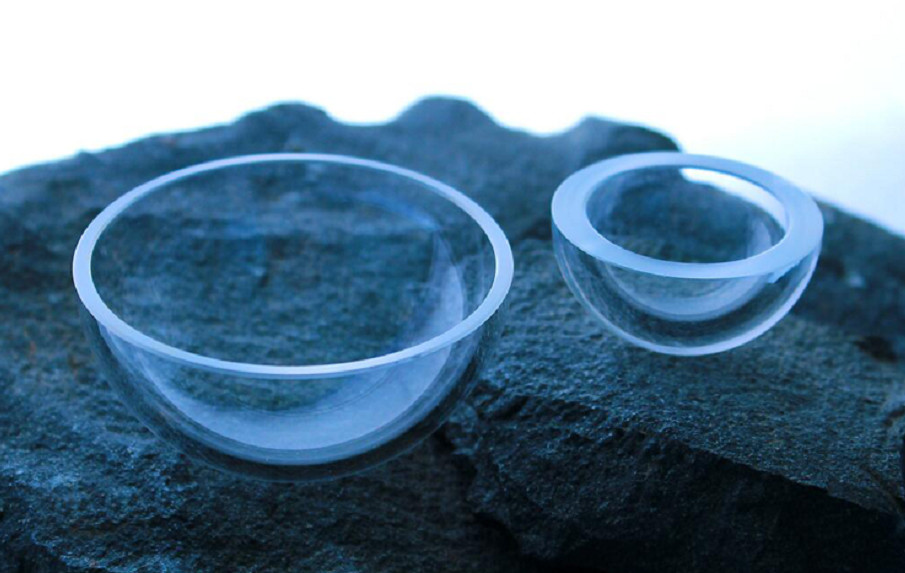

Optical Sapphire Sphere Dome Lens
Dome windows are hemispheres. The two optical surfaces are an equal thickness apart, creating a naturally strong shape that gets tougher under pressure. This makes dome windows ideal for underwater environments and in applications such as camera dome ports and submersible windows.
BK7 or K9L domes are used primarily in meteorology applications. BK7 offers excellent transmission from 300nm up to 2µm. BK7 is a relatively hard material, with excellent chemical durability.
UV fused silica domes ( JGS1 ): For applications operating in the deeper UV range, Worldhawk offers a range of UV fused silica domes. Fused silica domes are commonly used in underwater applications at extremely high pressures.
Sapphire domes: For infrared applications we can provide sapphire domes. Sapphire is an extremely hard material with transmission of over 80% in the 2-5µm wavelength range. As with fused silica, sapphire is able to withstand extreme pressures, making it the perfect material for underwater camera and missile fairing applications.

Specifications:

Material N-BK7 , H-K9L, UV Fused Silica, JGS1, Sapphire, IR crystal
Diameter 5mm-150mm, 150-300mm
Diameter Tolerance +/-0.1mm
Thickness >2mm
Thickness Tolerance ±0.2~0.1mm
Center Deviation 3-5'
Surface Accuracy 1L 1/2L 1/4L or According to size
Surface quality 80/50 60/40
Coating Both side Antireflection Coatings
Chamfers 0.2 x 45° typical

Dia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball LensDia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball LensDia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball Lens
